Default Boat Shelter ideas?

Remove this ad.....
become a Supporting Member today.
I ran out of weather and $ for building a shelter for the new boat last fall.

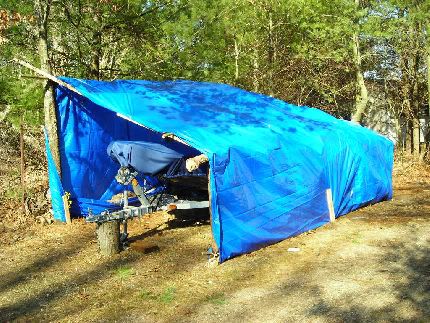

Luckily a hastily constructed $60 tarp and tree lean-to held up pretty well under some pretty heavy snow at times.
Boat Shelter ideas? - Michigan Homesteading and Home Improvement
Now I'm looking for ideas/plans/sources for something permanent and attractive.
Size would be around 20'L x (10'-12')W x maybe (6'-8')H (depending on lean-to or center ridge style roof)
Open ends to drive through and drop off/pick up.
Front and back walls could be optional.

Metal prefab shelters are running around $1000-$1300 installed by suppliers, seen those.
I'm looking at a budget of $600-$700 if possible.
Something I could maybe have the boys help me with over a few weekends...a summer or early fall project.
(Or, a handyman in the Wellston area might be an option also?)

Any nice designs and or pics with rough material estimates out there?
Types of materials? Links for any specialized stuff?

Thanks for any replies for consideration.
__________________
To err is human, to really screw up you need a computer...

Wood burns faster when you have to cut and chop it yourself

The guy that smiles when things go wrong...has already found someone to blame it on.
Reply With Quote
  #2
Old 03-15-2012, 07:01 PM
storman's Avatar
storman storman is offline
Guide

Join Date: Mar 2008
Location: Lake Isabella
Posts: 335
Default

Just sink some 4x4 in the ground and build a pole barn style boat shed with steel roof and walls add some gravel to park on just like the prefab canopy

Outdoor Hub mobile, the outdoor information engine
Reply With Quote
Remove this ad...
  #3
Old 03-16-2012, 02:10 AM
jimp's Avatar
jimp jimp is offline
Hunter gatherer
Rank Type


Join Date: Feb 2002
Location: Formerly Rochester Hills, Finally! Wellston
Posts: 3,905
Photos: 34Users Photo Gallery
Default

Quote:
Originally Posted by storman View Post
Just sink some 4x4 in the ground and build a pole barn style boat shed with steel roof and walls add some gravel to park on just like the prefab canopy

Outdoor Hub mobile, the outdoor information engine

Other than the 4 x 4's from Brethren lumber, any tips on where to get those metal materials here in the Northwest, Manistee to Cadillac area?
Plans or sketches for roof/weight bearing spacing of supports?
__________________
To err is human, to really screw up you need a computer...

Wood burns faster when you have to cut and chop it yourself

The guy that smiles when things go wrong...has already found someone to blame it on.
Reply With Quote
  #4
Old 03-16-2012, 09:02 PM
storman's Avatar
storman storman is offline
Guide

Join Date: Mar 2008
Location: Lake Isabella
Posts: 335
Default

Most lumberyards should be able to get the steel. Most pole barns are 2' oc for the roof with horizontal purlins to fasten the steel.



Outdoor Hub mobile, the outdoor information engine
Reply With Quote
  #5
Old 03-16-2012, 09:37 PM
double trouble's Avatar
double trouble double trouble is offline
Michiganiac

Join Date: Nov 2003
Location: commerce, mi
Posts: 4,343
Photos: 40Users Photo Gallery
Default for a little over a grand

You can have something like this

http://www.shelter-solution.com/boat...ase#googlebase

for $3grrrr

http://www.ebay.com/itm/DuraMax-Stee...item3a6210ae73
__________________
10 years ago the USA had Steve Jobs, Bob Hope and Johnny Cash.
Now the USA has no Jobs, no Hope and no Cash.
Reply With Quote
  #6
Old 03-16-2012, 09:39 PM
jpollman's Avatar
jpollman jpollman is offline
Michigan Sportsman
Rank Type


Join Date: Jan 2001
Location: Rochester Hills, MI USA
Posts: 18,321
Photos: 293Users Photo Gallery
Send a message via Yahoo to jpollman Send a message via Skype™ to jpollman
Default

This wouldn't be as permanent as building one out of wood and steel, but it's much more affordable. About half of what you said your budget is.

http://www.harborfreight.com/automot...age-68772.html

This one is a bit nicer, but still around your budget.

http://www.harborfreight.com/automot...ter-68776.html
__________________
Reply With Quote
  #7
Old 03-16-2012, 11:15 PM
petronius petronius is offline
Michigan Sportsman

Join Date: Oct 2010
Location: Oak Park
Posts: 5,759
Photos: 2Users Photo Gallery
Default

Quote:
Originally Posted by jimp View Post
Other than the 4 x 4's from Brethren lumber, any tips on where to get those metal materials here in the Northwest, Manistee to Cadillac area?
Plans or sketches for roof/weight bearing spacing of supports?
The Home Depot has the steel roof panels. It's the same thing used to cover metal pole barns. We also used it to cover an outhouse. I think it was about $15 - $18 a 10'x4' sheet 3 or 4 years years ago. Lay down your sheeting and use the self tapping screws with the rubber gasket to secure the metal sheets.

The Home Depot
3786 S US 131
Cadillac, MI 49601
(231)779-2776
__________________
Improvise, Adapt, Overcome
Reply With Quote
  #8
Old 03-17-2012, 04:48 AM
double trouble's Avatar
double trouble double trouble is offline
Michiganiac

Join Date: Nov 2003
Location: commerce, mi
Posts: 4,343
Photos: 40Users Photo Gallery
Default

http://www.homedepot.com/Building-Ma...searchNav=true

http://www.ebay.com/itm/Steel-Metal-...item3cc28dbc89

http://www.lowes.com/ProductDisplay?...llow&cId=PDIO1
__________________
10 years ago the USA had Steve Jobs, Bob Hope and Johnny Cash.
Now the USA has no Jobs, no Hope and no Cash.
Reply With Quote
  #9
Old 03-18-2012, 09:07 PM
jimp's Avatar
jimp jimp is offline
Hunter gatherer
Rank Type


Join Date: Feb 2002
Location: Formerly Rochester Hills, Finally! Wellston
Posts: 3,905
Photos: 34Users Photo Gallery
Default

Thanks for taking the time to post the links everyone.
Several ideas are progressing from them.

John P, please check your regular Email.
__________________
To err is human, to really screw up you need a computer...

Wood burns faster when you have to cut and chop it yourself

The guy that smiles when things go wrong...has already found someone to blame it on.
Reply With Quote
  #10
Old 03-19-2012, 08:36 PM
jpollman's Avatar
jpollman jpollman is offline
Michigan Sportsman
Rank Type


Join Date: Jan 2001
Location: Rochester Hills, MI USA
Posts: 18,321
Photos: 293Users Photo Gallery
Send a message via Yahoo to jpollman Send a message via Skype™ to jpollman
Default

Jim,
Last summer I was at Lowes looking for some roof panels for a shed I was doing for my neighbor. They have some nice looking corrugated panels that I think are either composite or fiberglass. They looked like they'd do the job pretty well and be easy to work with. Very similar to the metal panels. But I think in your situation, you're probably better off staying with metal. It will probably allow the snow to slide off better.

John
__________________
Reply With Quote
  #11
Old 03-20-2012, 12:06 AM
jimp's Avatar
jimp jimp is offline
Hunter gatherer
Rank Type


Join Date: Feb 2002
Location: Formerly Rochester Hills, Finally! Wellston
Posts: 3,905
Photos: 34Users Photo Gallery
Default

Thanks John, Lowe's carries those "Ondura" panels.
Kind of an asphalt like material sandwiched between vinyl or plastic.
I've used them on deer blinds and they are good for that.
One too many hammer taps on the nails however will dent and crack the material...Hail will bang it up also.
The hex socket screw system on the metal should be easy enough once the drill torque is set.
I think you're right too on the snow slippy sliding better with the metal.
__________________
To err is human, to really screw up you need a computer...

Wood burns faster when you have to cut and chop it yourself

The guy that smiles when things go wrong...has already found someone to blame it on.
Reply With Quote
  #12
Old 03-31-2012, 08:10 AM
aprils fool's Avatar
aprils fool aprils fool is offline
Tracker

Join Date: Dec 2011
Location: Big Rapids
Posts: 194
Default

Just and fyi for your pricing comparisons

Pole barns with metal roofs use trusses 4' on center and 2x4 perlins, if they have a shingled roof they are 2' on center

This would keep your cost down a little bit.

Troy
Reply With Quote
  #13
Old 03-31-2012, 08:27 AM
ESOX's Avatar
ESOX ESOX is offline
Super Moderator

Join Date: Nov 2000
Location: Squalor, MI
Posts: 27,010
Photos: 157Users Photo Gallery
Send a message via AIM to ESOX Send a message via Yahoo to ESOX
Default

I have seen a lot of 4' oc trusses destroyed by heavy snow loads, particularly with 4/12 pitches. 24" oc is overkill for metal panels. 32" oc is just right.
__________________
Life really does begin at forty. Up until then, you are just doing research.
Carl G. Jung
Reply With Quote
  #14
Old 04-07-2012, 10:05 AM
jimp's Avatar
jimp jimp is offline
Hunter gatherer
Rank Type


Join Date: Feb 2002
Location: Formerly Rochester Hills, Finally! Wellston
Posts: 3,905
Photos: 34Users Photo Gallery
Default

After some solid advice from those here and a few PM's, I came up with this.
Drive through lean-to.
In one end, unhitch, drive away.
Back up, hitch up, drive away.

Boat Shelter ideas? - Michigan Homesteading and Home Improvement

Basic framing is 11' x 20', (10) 4" x 4" vertical supports (11) 2" x 6" x 12' joists @24" OC.
Topped with 7/16" OSB
Slope runs 8' to 5.5' making it 12' (+/-) panels on roof...hardly any cutting except the angles on the end of 12' joists and cutting one OSB panel in 1/2.
Going with (7) "Fabral" metal panels and a ridge cap, screws every 16" and sealer tape at overlaps.
It took myself, my son and his nail gun/palm nailer 14 hours thus far.
Roof and maybe a couple cross braces to come next week after a few days break for the Easter holiday travel.

Total cost $665.00 materials and 6 Celebrex, 4 Vicodin, 4 Band-aids...nine head bumps at the low end.
Oh, and a pack of Dublin Cherry Chicken jerky for my son.

Thanks for all your comments/suggestions...
Final pic to come.
__________________
To err is human, to really screw up you need a computer...

Wood burns faster when you have to cut and chop it yourself

The guy that smiles when things go wrong...has already found someone to blame it on.

Last edited by jimp; 04-07-2012 at 10:09 AM.
Reply With Quote
  #15
Old 04-08-2012, 08:37 AM
jpollman's Avatar
jpollman jpollman is offline
Michigan Sportsman
Rank Type


Join Date: Jan 2001
Location: Rochester Hills, MI USA
Posts: 18,321
Photos: 293Users Photo Gallery
Send a message via Yahoo to jpollman Send a message via Skype™ to jpollman
Thumbs Up

Looks like you got 'er done!

I'm sure it'll do the job just fine. Nice work.
